We can test the effect of different levels of blocking the data,
using various recipes. Here we show recipe 2, which was used at first in
hand calculations made from the 15minute blocking automatically done in
the "Eggsummary" tables. This takes the composite Zscore for each egg
across the block, squares that and sums the Z² values across the eggs.
The result is a Chisquare with degrees of freedom equal to the number of
blocks times eggs.
In the figures below, this calculation is done with a
range of block sizes from 1 minute to one hour.
The endpoint of each plot is the final cumulative zscore.
Each point is the sum of event zscores divided by Sqrt(n).
The resulting traces show a general decline, with much variation, for
most block sizes across the years of accumulating events. This decline
appears less important in long block sizes. Very short blocks
show little indication of nonrandom deviation except perhaps in the
first 10 or 15 events. The model blocksize, 15 minutes, shows large
deviations mainly in the events where it was the predefined analysis
unit.
[More comments to come.]

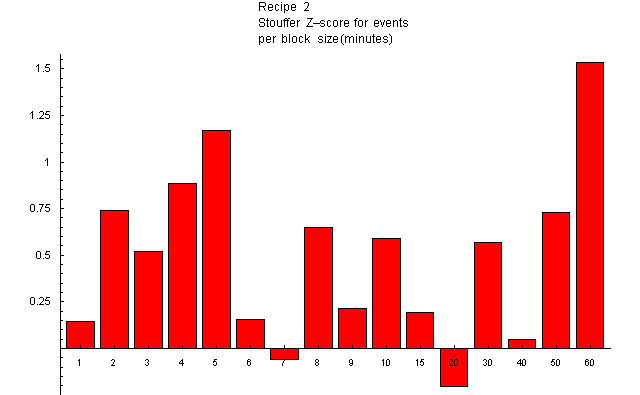

Bar Charts
A broader perspective can be gotten from visualizing the material in bar
charts.
Recipes 2 and 5 are the ones used for most events. They are,
respectively, the 15minute blocking used in early analysis,
and the "standard analysis", a composite Stouffer Z across eggs, squared
and summed across blocks (block size is almost always one second
in the original analysis).
The following table summarizes the exploration of block sizes for these
two methods, with the
number of events amenable to the blocking, and a composite (Stouffer)
Zscore for two different weightings, equal for all events, and
proportionate to the degrees of freedom.
